A ductless mini-split can condition a bedroom, addition, home office, or other area without extending central ductwork. That makes the equipment layout especially important in Winston-Salem and Piedmont Triad homes, where room shapes, older construction, and renovation plans can vary widely.

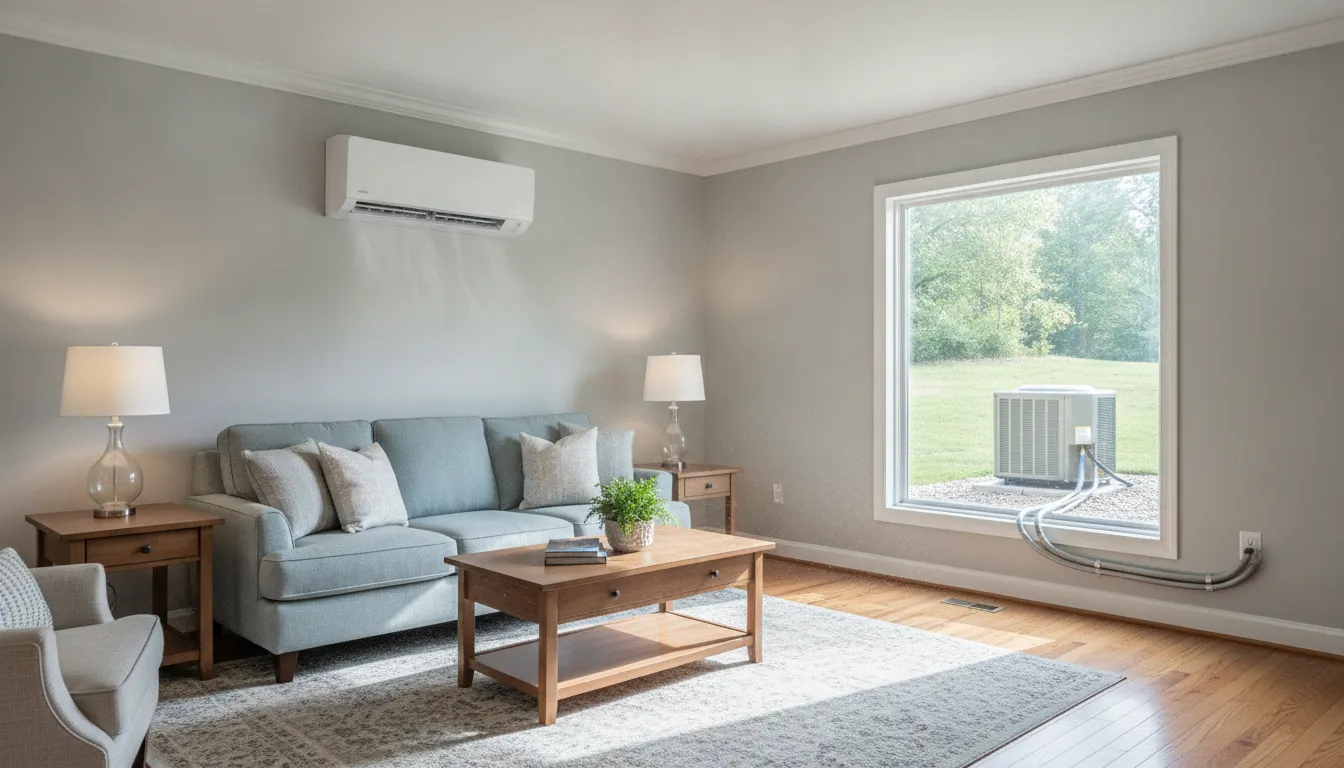

Indoor Heads are the room-side indoor units of a mini-split system. Each head typically serves a specific room or area, using its own fan and evaporator coil, while connecting to a separate outdoor unit. In a multi-zone design, several heads can support room-by-room comfort, but the right arrangement depends on the home and a professional load evaluation.
The word “split” describes the separation between the indoor and outdoor equipment. Refrigerant lines, controls, and other connections allow the two sides to work together, so head placement is more than a cosmetic decision. Understanding what the indoor unit does is the first step toward choosing a practical system for your home’s layout.
Learn more about mini-split installation from QRC HVAC & Refrigeration and call (336) 281-5144.
What Are Indoor Heads in a Mini-Split System?
In homeowner-friendly terms, an indoor head is the part you see inside the house. It typically contains a fan and an evaporator coil that help move and condition air in one room or defined area. Depending on the system design, the head can provide heating, cooling, or both.
The U.S. Department of Energy describes air-to-air heat pumps as systems commonly configured with separate indoor and outdoor units. It identifies ductless mini-splits as one type of air-to-air heat pump configuration. Learn more from the Department of Energy.
Why are they called indoor heads?
“Indoor head” is common HVAC language for the indoor unit connected to a mini-split system. You may also hear terms such as indoor air handler, evaporator unit, or wall-mounted unit. These terms can describe related equipment.
The basic idea is the same: the component inside the conditioned space receives system refrigerant and uses a fan to move air through the room-side coil.
One indoor head generally serves one room or area. That makes it different from a central HVAC air handler, which sends conditioned air through a network of ducts to multiple rooms. A mini-split head does not move air through walls like a ducted system. As a result, a head in an open living area should not automatically be expected to keep a closed bedroom or office at the same temperature.
What does “split” mean?
The word split refers to the system being divided between indoor and outdoor equipment. The outdoor unit contains the outdoor-side components, while one or more indoor heads handle room-side air delivery.
Refrigerant lines and other connections join the indoor and outdoor portions into one working system. The exact arrangement depends on whether the design is single-zone or multi-zone.
A single-zone system pairs one outdoor unit with one indoor head for one primary comfort area. A multi-zone system can connect multiple indoor heads to one outdoor unit.
This allows the design to address separate rooms or comfort zones. The right arrangement depends on the home’s layout, insulation, windows, and comfort goals, not simply on square footage.
For Winston-Salem and nearby Triad homeowners, ductless mini-splits can be useful in additions, older homes, bedrooms, offices, and other spaces where extending ductwork is impractical. The best starting point is understanding how the room is used and how air can move through it. QRC HVAC & Refrigeration can then evaluate whether a ductless mini-split design fits the space.
How Do Indoor Heads Connect to the Outdoor Unit?
The indoor head is the room-side component mounted inside the home. It contains the fan and evaporator coil that deliver conditioned air to one room or area. The outdoor unit sits outside and works with the indoor equipment as part of a split system. The word split describes this separation between indoor and outdoor units, rather than a system that moves air through a central duct network. The U.S. Department of Energy describes air-to-air heat pumps as systems commonly configured with separate outdoor and indoor units, including ductless mini-split designs. Read the DOE overview of air-to-air heat pump types.
Refrigerant lines provide the working connection between the two sides. Depending on the system design, the lines are routed through a small wall penetration or another planned path between the indoor and outdoor locations. Refrigerant circulates between the components, carrying heat out of the room during cooling and supporting heat delivery during heating. The indoor fan then moves air across the coil and back into the room.
Controls are part of the connection as well. The indoor head communicates operating requests, such as the desired temperature and mode, to the system. In a multi-zone arrangement, several indoor heads may connect to one properly matched outdoor unit. Each head can serve its own room or comfort area, but the equipment still has to be selected as a coordinated system. A head is not simply an independent appliance that can be added to any available outdoor unit.
Why condensate and compatibility matter
Cooling removes moisture from indoor air. That moisture collects as condensate at the indoor head and must drain safely to an appropriate location. The installer considers the drain route, slope, access, and the room’s construction so water does not remain near the equipment or damage finished surfaces. A condensate pump may be considered when gravity drainage is not practical, but the right approach depends on the home’s layout.
Compatibility involves more than matching brand names. The outdoor unit, indoor head, controls, refrigerant circuit, and electrical requirements must be designed to work together. The number and type of indoor units, line routing, capacity, and operating modes all affect system selection. A professional evaluation also accounts for wall or ceiling construction and the best location for even airflow.
For Winston-Salem and Triad homeowners comparing options for an addition, bedroom, or room without ductwork, the connection is one part of a larger design decision. Learn more about professional mini-split installation before choosing equipment. Avoid opening refrigerant circuits or attempting electrical work yourself. A qualified HVAC professional can verify compatibility, route the lines and drain correctly, and commission the complete system.
What Is the Difference Between Single-Zone and Multi-Zone Systems?
The practical difference is how the system handles space. In an open family room or one-room addition, a single indoor head may be able to distribute conditioned air throughout the area. That arrangement can make sense when there are few barriers and the space functions as one comfort zone.
Separate rooms are different. A head in a main room does not move air through walls like a ducted system. If a bedroom, office, bathroom, or bonus room has a door or other separation, the temperature near the first head may not match the conditions in that room. The separated space could remain too warm, too cool, or humid even when the main room has reached its thermostat setting.
| Consideration | Single-zone | Multi-zone |
|---|---|---|
| Typical layout. | One open room or connected area. | Two or more separate rooms or comfort areas. |
| Indoor heads. | One room-side indoor unit. | Multiple indoor units planned for the home’s layout. |
| Airflow concern. | Air can circulate more readily within the open area. | Doors, hallways, room shape, and furniture can limit how air reaches other spaces. |
| Planning focus. | Head placement and the load of the area. | Room-by-room loads, head placement, system compatibility, and zoning goals. |
Multi-zone does not simply mean adding indoor heads until every room has one. Square footage matters, but it is only one part of the design. Door placement, ceiling height, stair openings, room shape, furniture, insulation, windows, and sun exposure can all affect airflow and comfort. A long room or a space with large glass areas may need additional design attention to avoid hot and cold spots.
The U.S. Department of Energy identifies split systems as available in both single-zone and multi-zone designs, with options to combine ducted and ductless indoor units for a home’s needs. That flexibility can be useful in an older Winston-Salem home, an addition, or a property where extending central ductwork is not practical. QRC HVAC & Refrigeration provides custom zoning configuration, professional sizing, and system selection rather than prescribing the same layout for every home.
For a broader look at where ductless equipment may fit, review these ductless mini-split benefits. A qualified evaluation can then determine whether one open zone or multiple room-specific zones better match the way your household uses the space.
Which Indoor Head Style Fits Each Room?
Indoor units come in several configurations because rooms do not all offer the same installation conditions. A standard bedroom or office may have an open wall that works well for a high-wall head. An attic or room with limited usable wall space may call for a floor console. An open-plan area may benefit from a ceiling cassette, while a remodel with available ceiling space may support a concealed ducted unit.
| Style | Often fits | Appearance and access | Planning considerations |
|---|---|---|---|
| High-wall. | Bedrooms, living rooms, offices, and other rooms with clear wall space. | Visible and mounted high on the wall; generally straightforward to reach for routine access. | Needs suitable wall placement so airflow can serve the room without avoidable obstructions. |
| Floor console. | Attics, Cape Cod-style rooms, or spaces with limited upper-wall options. | Mounted low along the wall or near floor level; accessible, but occupies lower wall space. | Furniture, trim, and foot traffic must be considered around the unit. |
| Ceiling cassette. | Open-plan rooms, larger areas, or spaces where wall mounting is impractical. | Recessed into the ceiling for a less prominent appearance; service access must be planned. | Requires compatible ceiling space and a practical condensate-drain route. |
| Concealed ducted. | Rooms with an accessible ceiling void where visible equipment is not desired. | Hidden above the ceiling and connected to short duct runs with one or more outlets. | Needs space for the unit, duct paths, grilles, service access, and airflow design. |
Match the head to the room, not the trend
High-wall units are widely used because they work in many standard rooms and are usually easy to access. That does not make them the automatic answer for every Winston-Salem or Triad home. A low wall may be the more practical location in an upper-level room, while a visible wall unit may conflict with the room’s intended appearance.
Ceiling cassettes can distribute air from a central ceiling position, but the ceiling cavity, drainage, and future service access matter. Concealed ducted heads offer a cleaner visible profile, yet they require thoughtful planning for short duct runs and supply outlets. A unit that looks ideal on a floor plan may perform poorly if furniture, doors, ceiling changes, or neighboring rooms restrict its airflow.
Before selecting a style, review the room dimensions, wall and ceiling construction, line-set route, condensate path, and maintenance access. QRC HVAC & Refrigeration can also help homeowners understand professional mini-split installation before equipment selection is finalized. The best choice is the one that fits the space, supports consistent airflow, and remains practical to service over time.
How Should Indoor Heads Be Sized for Room-by-Room Comfort?
Each indoor head should be sized for the room or area it conditions. Square footage provides a starting point, but insulation, windows, sun exposure, ceiling height, air leakage, room shape, doors, and airflow paths all affect the right selection. A qualified load evaluation is more reliable than choosing a capacity from floor area alone.
A ductless system works best when the indoor unit matches the actual heating and cooling demand of its zone. That does not mean every room needs its own head, or that one head will distribute comfort evenly through a closed bedroom, hallway, or office. An open addition may be served by one strategically placed unit. While separated rooms may need separate zones because an indoor head does not move air through walls like a ducted system.
- Start with the room’s size and use. Measure the conditioned area, then consider whether the space is a bedroom, office, open living area, addition, or room with an unusual schedule. Square footage matters, but it does not determine the complete system layout. A room that is rarely occupied may still need dependable temperature control when it is in use.
- Account for the building envelope. Insulation levels, air leakage, window type, roof and wall exposure, exterior shade, and the amount of sun entering through glass all change the room’s load. Large windows, strong afternoon sun, or an older, drafty room can create a different demand from a similarly sized shaded room with better insulation. In the Winston-Salem and Triad climate, seasonal heating and cooling needs should both be considered.
- Review ceiling height and room geometry. Ceilings above standard height, vaulted spaces, long narrow rooms, and open stairways can affect how conditioned air circulates. A large glass area or an unusual room shape may require extra design attention to avoid hot and cold spots. Furniture placement can also influence whether air reaches the occupied part of the room.
- Map doors, hallways, and connected spaces. An open connection can allow a head to serve a broader area, but a closed door changes the airflow equation. A head in a main room may satisfy its thermostat while a separated bedroom remains too warm, too cool, or humid. Plan around the spaces people actually need to condition, not just the total square footage of the floor.
- Match capacity to the calculated load. Undersizing can leave an indoor air handler running continuously without reaching the set temperature. Oversizing can cause short cycling, humidity problems, and increased wear. The goal is not the largest available unit. It is a properly matched indoor head and outdoor system that can deliver steady comfort without relying on a generic capacity rule.
For a broader explanation of how ductless equipment choices fit different homes, review QRC HVAC & Refrigeration’s ductless mini-split benefits. The next step is a room-by-room assessment that considers the structure, layout, comfort goals, and compatibility of the complete system.
When Should You Call a Qualified Mini-Split Installer?
Installation planning starts with the building, not a catalog. Doors, hallways, stair openings, ceiling height, room shape, furniture, insulation, windows, shade, and sun exposure all affect airflow and heating and cooling loads. Long rooms, vaulted ceilings, and large glass areas may need additional design attention to avoid hot or cold spots. Square footage matters, but it does not determine the best layout by itself.
That evaluation also clarifies whether the home needs a single-zone or multi-zone arrangement. An open addition may be served by one Indoor Head, while a closed bedroom or office may need its own comfort zone. A head does not move air through walls like a ducted system, so placing one unit in a main room does not guarantee comfortable conditions in separated spaces. QRC HVAC & Refrigeration provides professional sizing, system selection, and custom zoning configuration for these decisions.
Placement and connection details matter
The installer should review where each indoor unit will sit, how air will move through the room, and whether the location permits practical service access. The outdoor unit and Indoor Heads must be compatible as a system. Refrigerant lines, control wiring, and condensate drainage need a planned route between the indoor and outdoor equipment. Poor routing or an unsuitable drain path can affect appearance, reliability, and moisture management.
Electrical coordination is another reason to arrange professional installation rather than treating the project as a simple wall-mount job. The installer can identify the required power arrangement, coordinate with other project work, and address applicable installation requirements. Homeowners should not attempt refrigerant or electrical work without the appropriate training and equipment.
Commissioning and maintenance protect the investment
After the equipment is installed, commissioning confirms that the selected system, connections, controls, airflow, and drainage are working together. Ask the installer to explain operation for each zone, filter access, controller settings, and signs that service is needed. A complete installation should leave you with a usable plan for routine care, not just a powered-on unit.
QRC’s mini-split installation service includes design and installation support. QRC also offers mini-split diagnostics, repair, and preventative maintenance when an existing system needs attention. Once the layout and equipment choices are clear, the next step is to discuss the project with a local professional before moving to the most common homeowner questions.
Talk with QRC HVAC & Refrigeration about your mini-split plan and call (336) 281-5144.
Frequently Asked Questions
What is a ductless head?
A ductless head is the indoor unit that delivers heated or cooled air to one room or area. It contains the room-side fan and coil, while the system operates without traditional air ducts. The head connects to an outdoor unit as part of a complete mini-split system. Learn more about ductless indoor units.
How many indoor heads does a mini-split system need?
There is no universal head count. One open area may work with one head, while separate rooms such as a closed bedroom or office may need separate zoning for consistent comfort. Room layout, doors, ceiling height, insulation, windows, and comfort goals all affect the design.
Can one indoor head cool multiple closed rooms?
Usually, homeowners should not assume that one head will condition every nearby room evenly. A head does not move air through walls like a ducted system. So a closed room may remain warmer, cooler, or more humid than the space where the head is installed.
How do I choose the right indoor head size?
Each indoor unit should be matched to the room it serves, not selected by square footage alone. A qualified technician should evaluate room dimensions, ceiling height, sun exposure, windows, insulation, and airflow. Undersizing can leave a system running without reaching the set temperature, while oversizing can cause short cycling and humidity concerns.
Ready to Plan Room-by-Room Comfort?
Indoor heads can help tailor comfort to the rooms and layout of your home, but the right system depends on thoughtful planning and proper sizing. To learn more about mini-split installation, contact QRC HVAC & Refrigeration about your installation needs or call (336) 281-5144.
